OpenSearch Logs

By enabling this toolset, HolmesGPT will fetch pod logs from OpenSearch.

Important: Disable Default Logging Toolset

Only one logging toolset should be enabled at a time. If you enable this toolset, disable the default kubernetes/logs toolset.

Available Log Sources:

• Kubernetes logs - Direct pod log access (enabled by default)
• Grafana Loki - Centralized logs via Loki
• OpenSearch logs - Logs from OpenSearch/Elasticsearch
• Coralogix logs - Logs via Coralogix platform
• DataDog - Logs from DataDog

💡 Choose one: Only enable one logging toolset at a time for best performance.

Configuration

Holmes CLIRobusta Helm Chart

Add the following to ~/.holmes/config.yaml, creating the file if it doesn't exist:

toolsets:
  opensearch/logs:
    enabled: true
    config:
      opensearch_url: <your opensearch/elastic URL>
      index_pattern: <name of the index to use> # The pattern matching the indexes containing the logs. Supports wildcards. For example `fluentd-*`
      opensearch_auth_header: "ApiKey <...>" # An optional header value set to the `Authorization` header for every request to opensearch
      labels: # set the labels according to how values are mapped in your opensearch cluster
        pod: "kubernetes.pod_name"
        namespace: "kubernetes.namespace_name"
        timestamp: "@timestamp"
        message: "message"

  kubernetes/logs:
    enabled: false # HolmesGPT's default logging mechanism MUST be disabled

After making changes to your configuration, run:

holmes toolset refresh

holmes:
  toolsets:
    opensearch/logs:
      enabled: true
      config:
        opensearch_url: https://skdjasid.europe-west1.gcp.cloud.es.io:443 # The URL to your opensearch cluster.
        index_pattern: fluentd-* # The pattern matching the indexes containing the logs. Supports wildcards
        opensearch_auth_header: "ApiKey b0ZlwQWEsdwAkv047bafirkallDFWJIWDWdwlQQ==" # An optional header value set to the `Authorization` header for every request to opensearch.
        labels: # set the labels according to how values are mapped in your opensearch cluster
          pod: "kubernetes.pod_name"
          namespace: "kubernetes.namespace_name"
          timestamp: "@timestamp"
          message: "message"

    kubernetes/logs:
      enabled: false # HolmesGPT's default logging mechanism MUST be disabled

Update your Helm values and run a Helm upgrade:

helm upgrade robusta robusta/robusta --values=generated_values.yaml --set clusterName=<YOUR_CLUSTER_NAME>

Configuring index_pattern and labels

You can tweak the labels used by the toolset to identify kubernetes resources. This is optional and only needed if your logs settings differ from the defaults in the example below.

toolsets:
  opensearch/logs:
    enabled: true
    config:
      index_pattern: fluentd-*
      labels:
        pod: "kubernetes.pod_name"
        namespace: "kubernetes.namespace_name"
        timestamp: "@timestamp"
        message: "message"

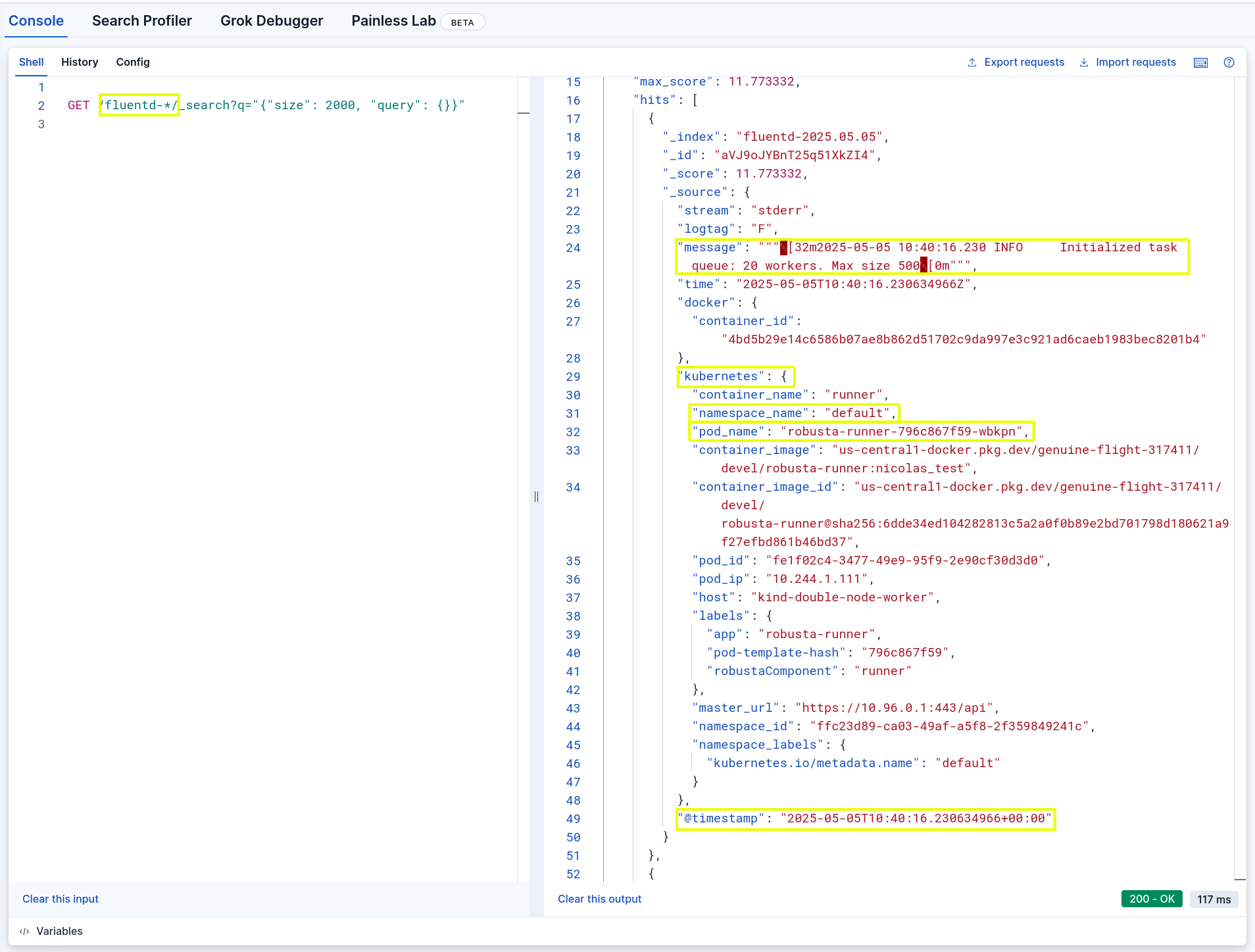

Below is a screenshot of a query that was done using Elastic dev tools to find out what should be the values for the labels.

In the image above, the following values and labels are identified by a yellow rectangle:

Configuration field	Value	Description
index_pattern	fluentd-*	This defines what opensearch indexes should be used to fetch logs
pod	kubernetes.pod_name	The kubernetes pod name
namespace	kubernetes.namespace_name	The kubernetes namespace
timestamp	@timestamp	This timestamp is used to search logs by time range.
message	message	This is the content of the log message

Capabilities

Tool Name	Description
fetch_pod_logs	Retrieve logs using opensearch
